Halspan® ML1200-DBM: Double Monitored Standard Magnet
Halspan® ML1200-DBM: Double Monitored Standard Magnet
Description

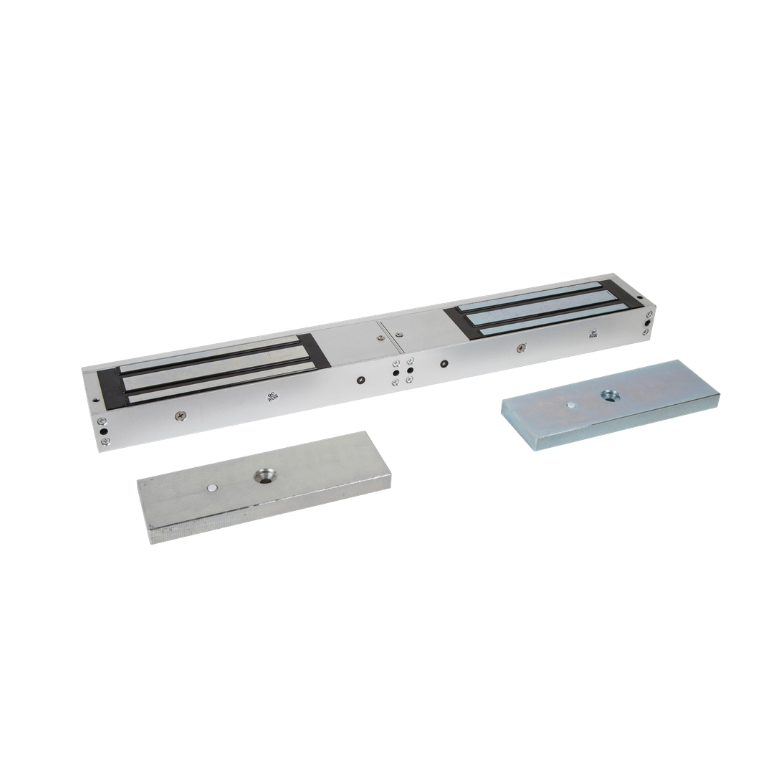

Halspan® ML1200-DBM: Double Monitored Standard Magnet is a monitored magnet product offering 1200lbs (545kg) x2 holding force. For use with most access control / entry systems.
Description
Magnet size 530mm (L) x 73mm (W) x 40mm (D)
12/24 VDC @600/300mA x2
545kg (1200lbs) holding force x2
Built in surge protection
Fail safe operation (power to lock)
+/- 15% voltage tolerance
Push off release pin on armature
Clean and compact design in aluminium
Standard magnet
LED indication (red to green)
No residual magnetism
Content includes: armature plates, fixings kits, instructions and armature fixing template
