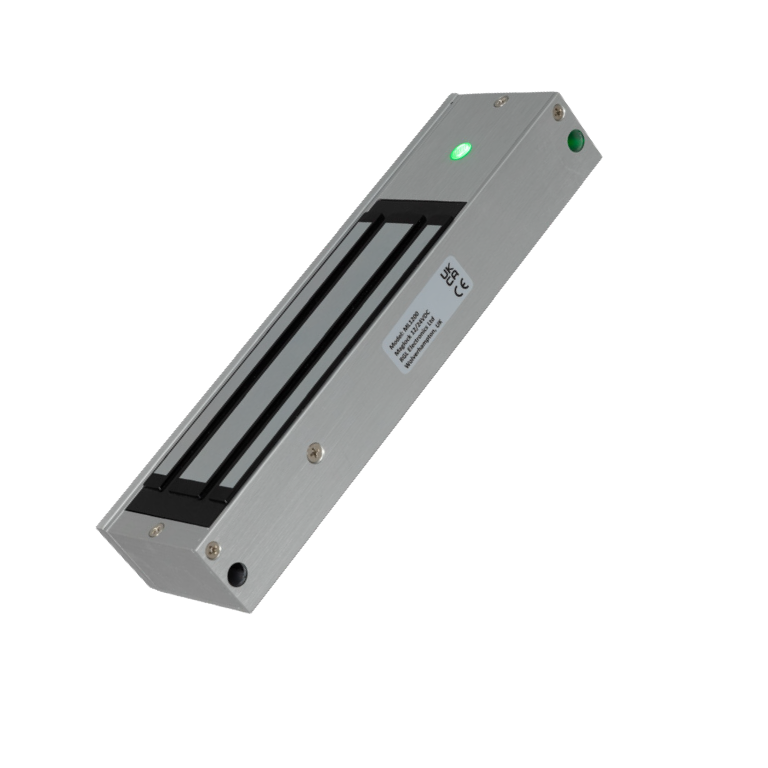

Halspan ML1200 Standard Magnets

Description

The Halspan® ML1200 is a standard magnet product offering 1200lbs (545kg) holding force. For use with most access control / entry systems. Monitored and unmonitored versions available.

Description

• Magnet size 266mm (L) x 72mm (W) x 40mm (D)
• 12/24 VDC @600/300mA
• 545kg (1200lbs) holding force
• Built in surge protection
• Fail safe operation (power to lock)
• +/- 15% voltage tolerance
• -10° to +50° operating temperature
• Push off release pin on armature
• Clean and compact design in aluminium
• LED indication (Unmonitored, red; Monitored, red to green)
• No residual magnetism
• Content includes: armature plate, fixings kit, instructions and armature fixing template
