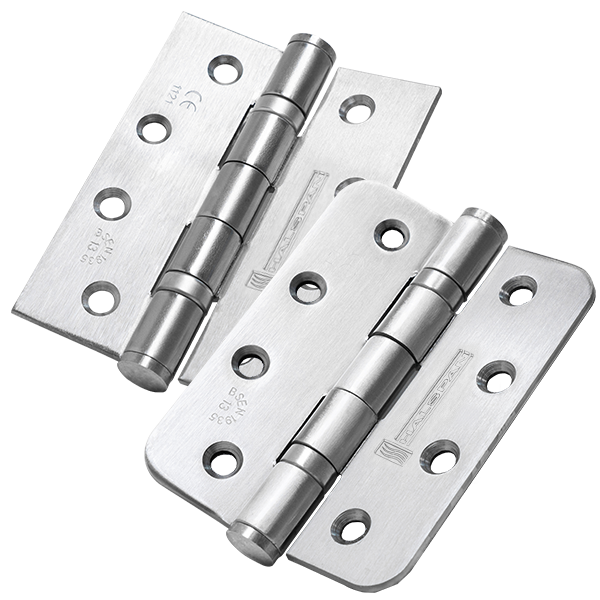

Halspan NFR & 30 minute Grade 14 Radius Corner Hinges

Halspan NFR & 30 minute Grade 14 Radius Corner Hinges

Description

Halspan® 30 Grade 14 Hinges provide strength and durability to complement Halspan’s full range of 30 minute and NFR door cores. Fully certified and backed by our extensive fire test evidence, Halspan ® 30 Grade 14 hinges have also undergone rigorous durability testing, showing little sign of wear after passing a 1,000,000 cycle test, ensuring suitability for doors in sever duty application. Halspan® 30 Grade 14 hinges are maintenance free and come with 25 year guarantee.

Description

102 x 76 x 3mm Concealed bearing butt hinge
BS EN 1935:2022 Grade 14
UKCA & CE 1121
Suitable for use with backcheck door closers
Maximum adjusted door weight 160kg
Maintenance free, guaranteed for 25 years
Tested to 1,000,000 cycles
Supplied with 31mm screws for the frame and 50mm screws for the door
Available in Brushed Stainless Steel & Brass

Fitting Instructions
